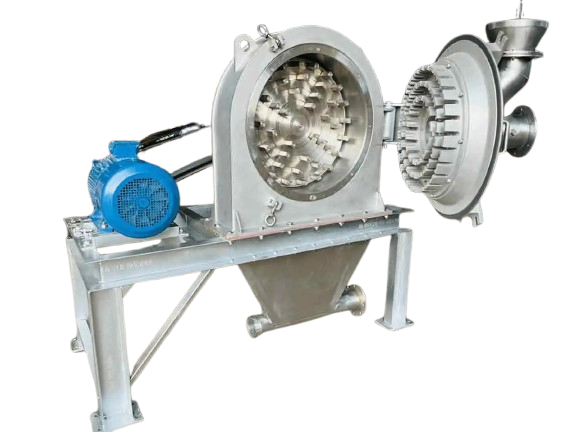

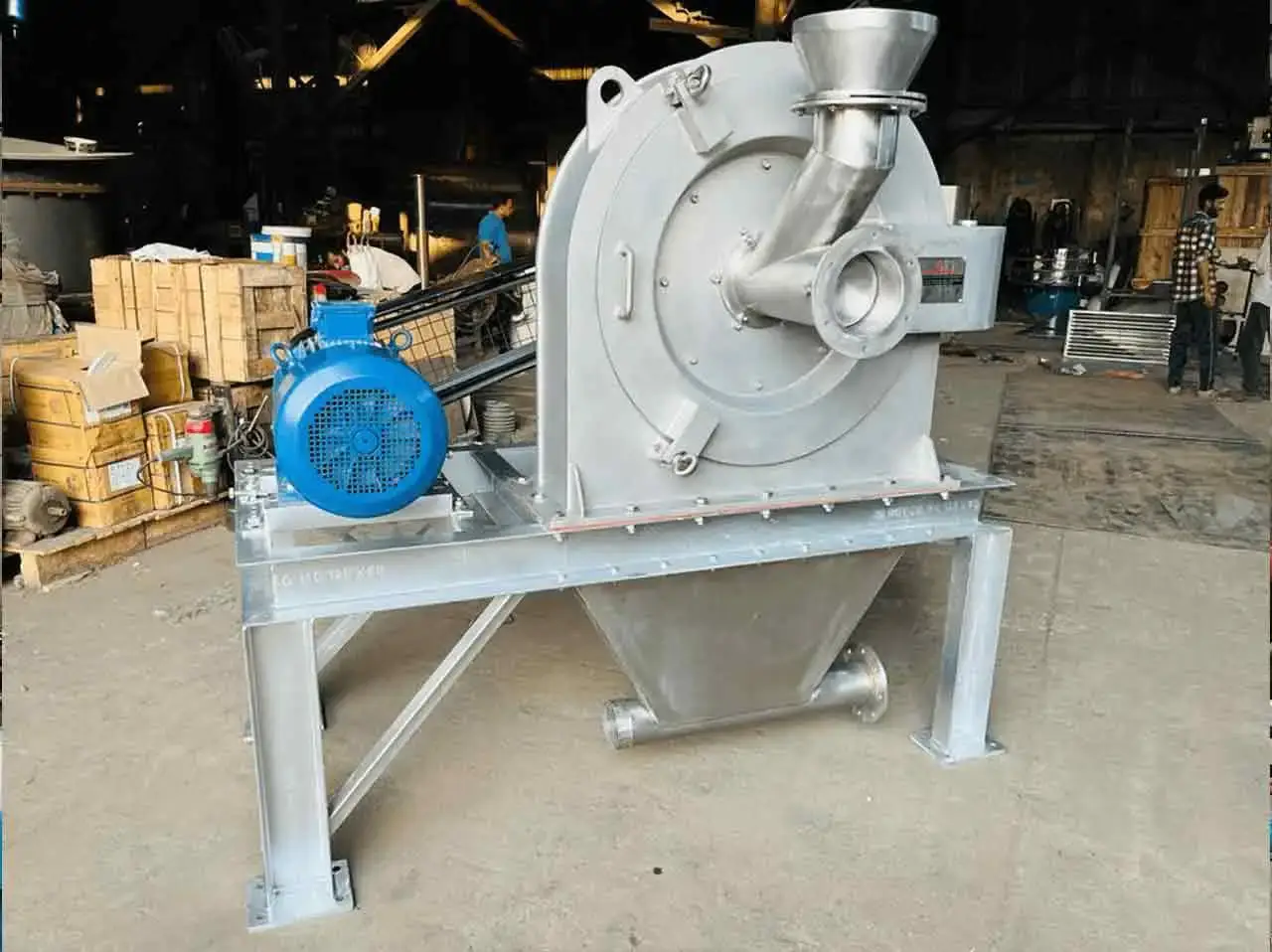

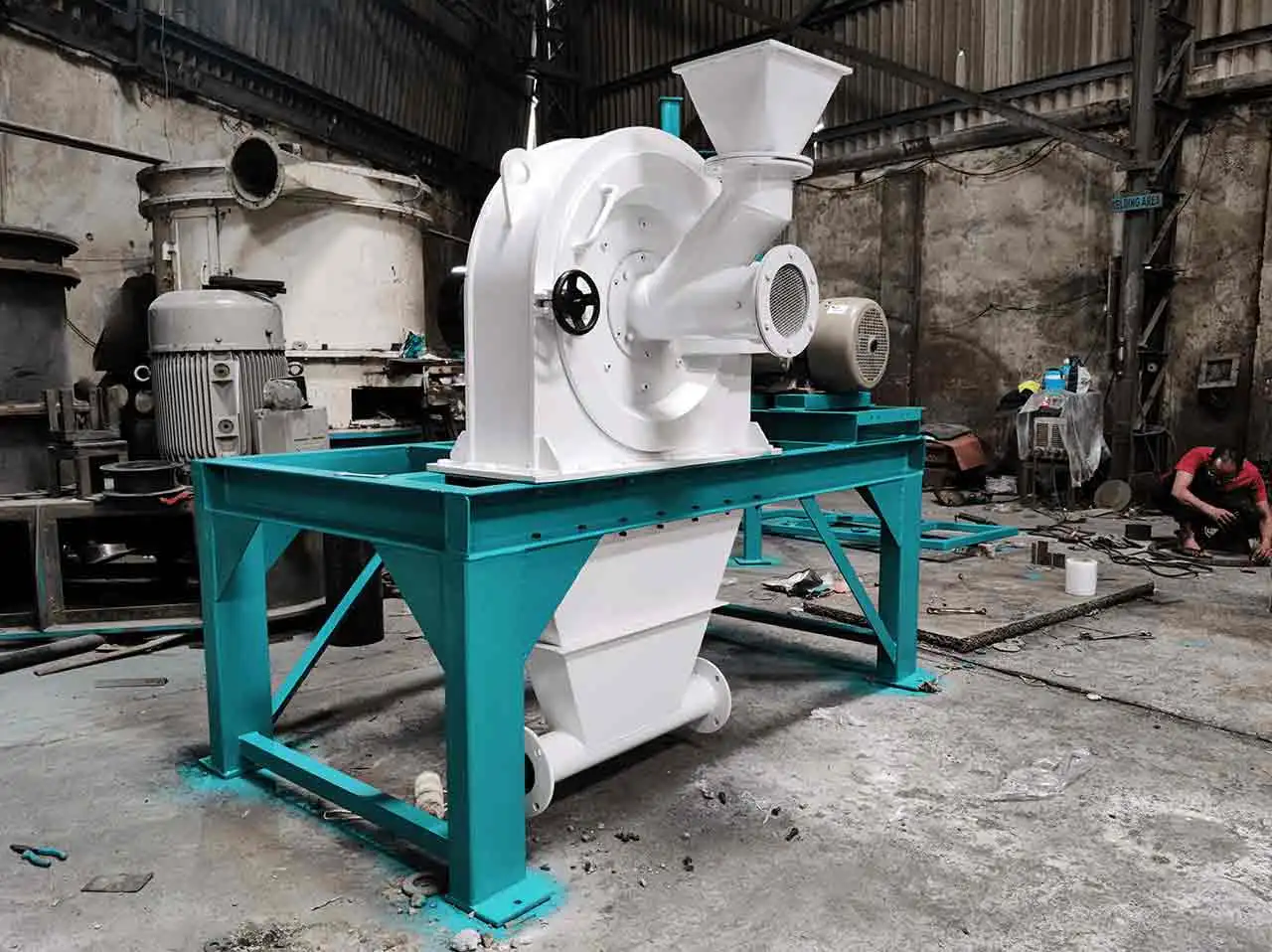

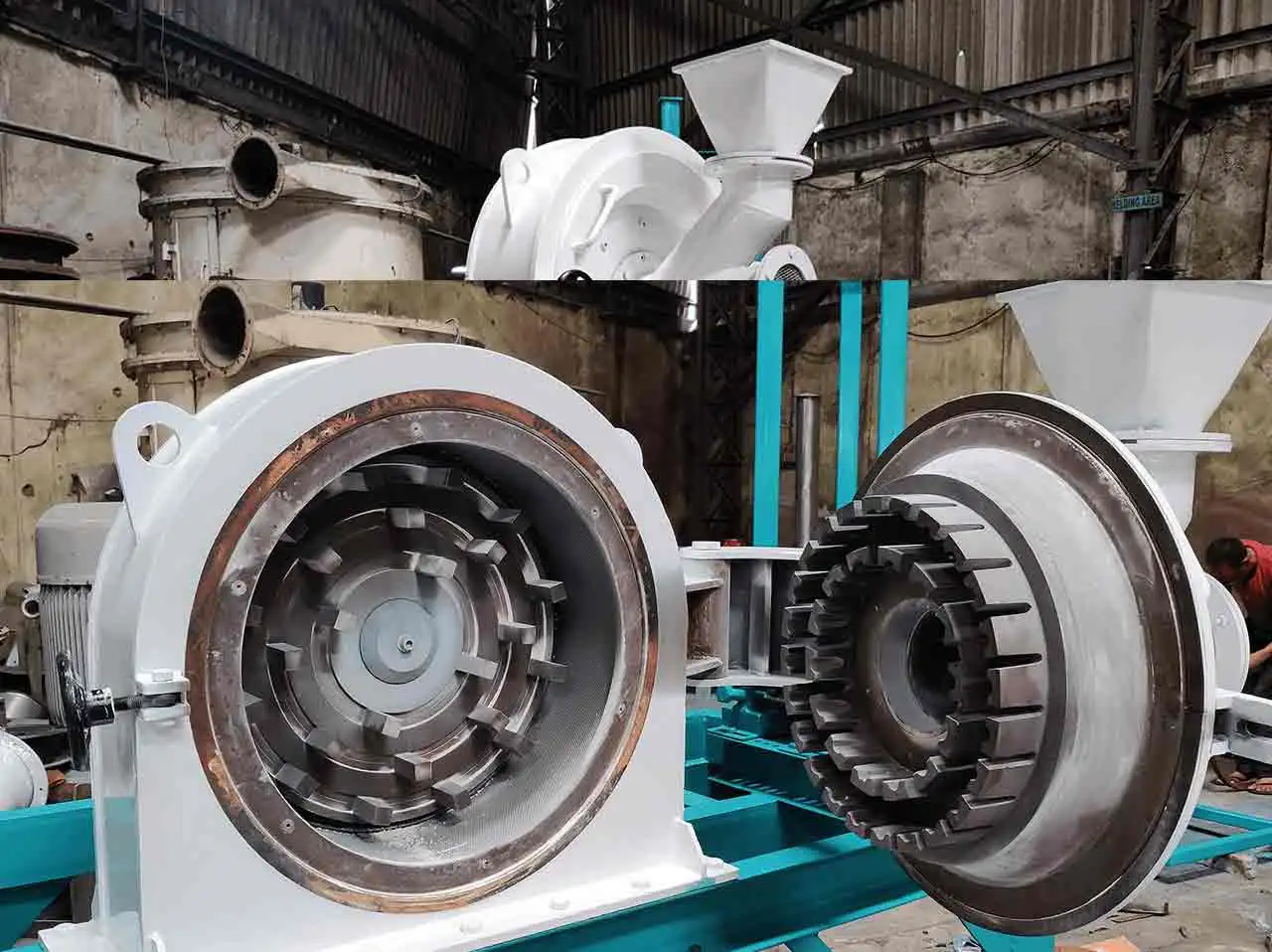

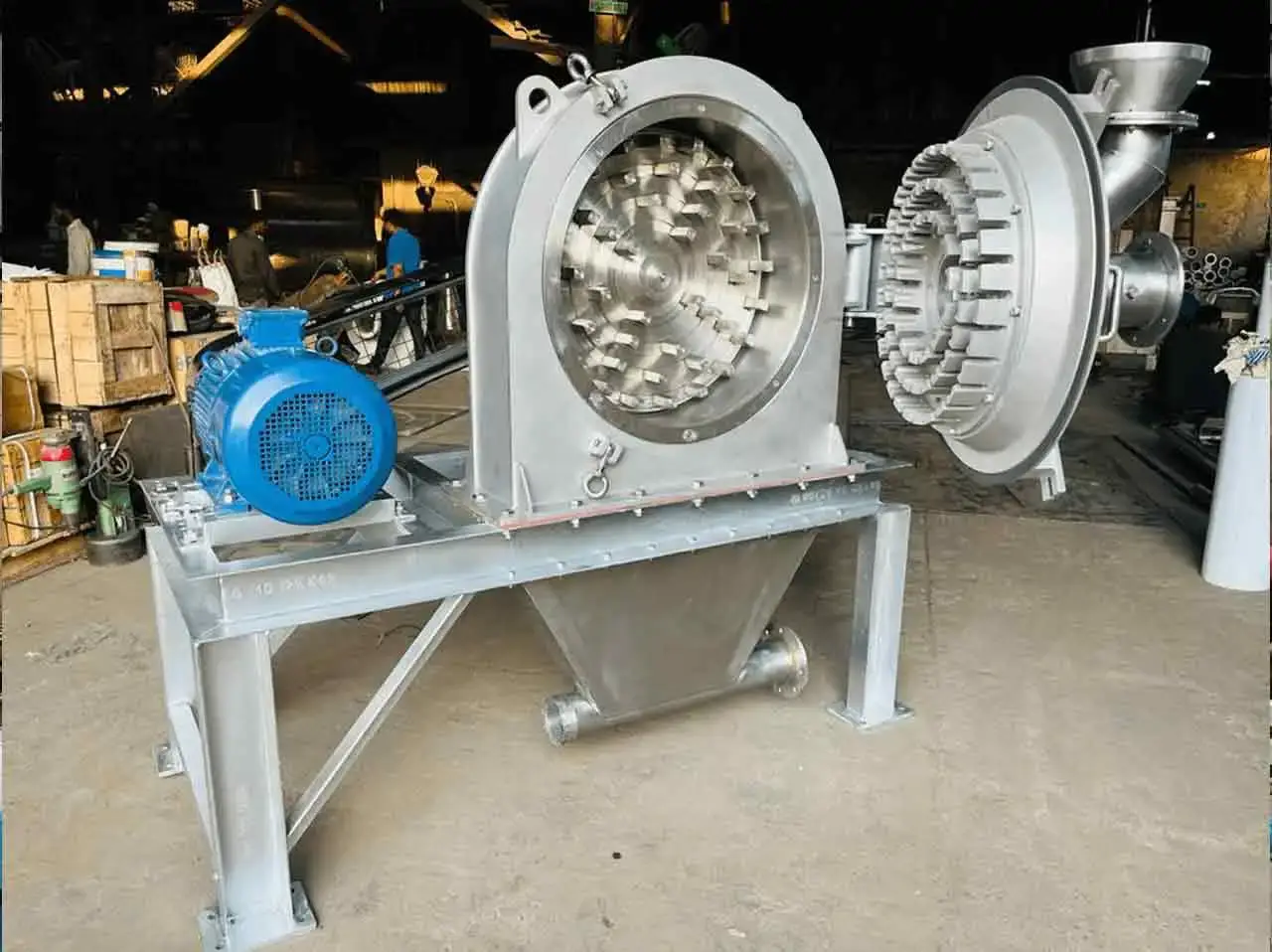

Details of Pin Mill

The machine is designed for finer mesh grinding of different materials, which are heated during grinding. The RPM of machine varies from 2000 to 4000 depending on the material to be pulverized. The output mesh size is also variable from material to material, screened out from provided screen basket.

This is an ideal solution for size reduction for foodstuff. It is available with a water-cooling jacket for special requirements. Uniform output & easy to operate and maintain are the distinctive features of the mill.

Technical Chart

Models
Main Motor (HP)
Capacity Range

PM 400

10 HP

100 kg to 150 kg

PM 500

20 HP

200 kg to 300 kg

PM 650

25 HP & 30 HP

300 kg to 450 kg
